EVOLUTION MUSASHI
KT150 class AB push-pull integrated amplifier
| Circuit system | KT150 class AB push-pull integrated amplifier |
| Tubes | KT150 x 4, 12AU7 x 4 |
| Bias | Fixed bias, adjustable with bias meter |
| Output power | 100W+100W at 8 ohms |
| Frequency response | 6Hz-80kHz(-3dB) |
| S/N ratio | 93dB |

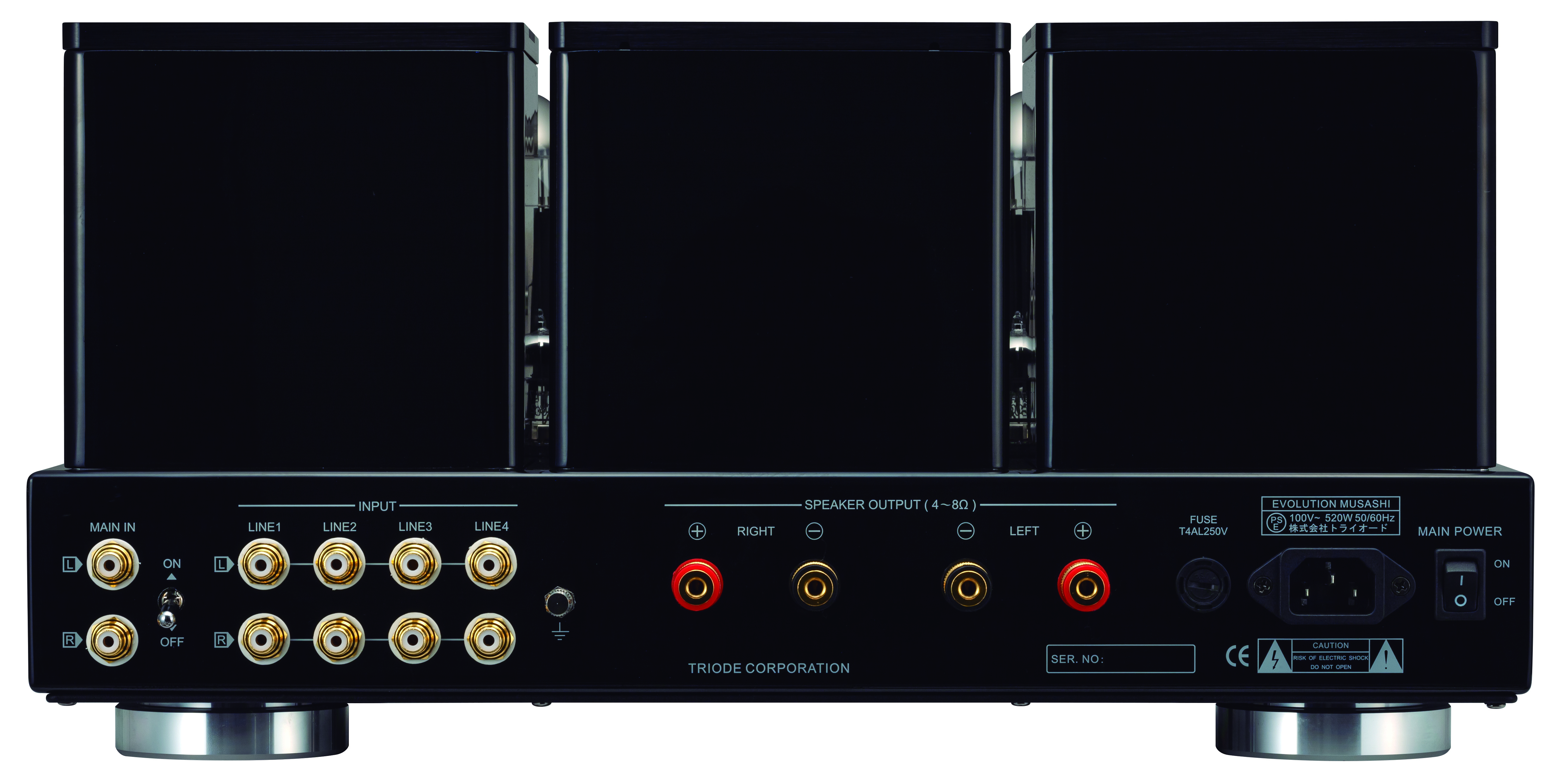

| Input terminals | RCA unbalanced x 5(LINE1-4, MAIN IN x 1) |
| Input sensitivity | LINE 420mV, MAIN IN 1.2V |
| Input impedance | LINE 100k ohm, MAIN IN 10k ohm |
| Output terminals | |
| Speaker output terminals | 4～8 ohms |
| Equipped components | High quality speaker terminal |

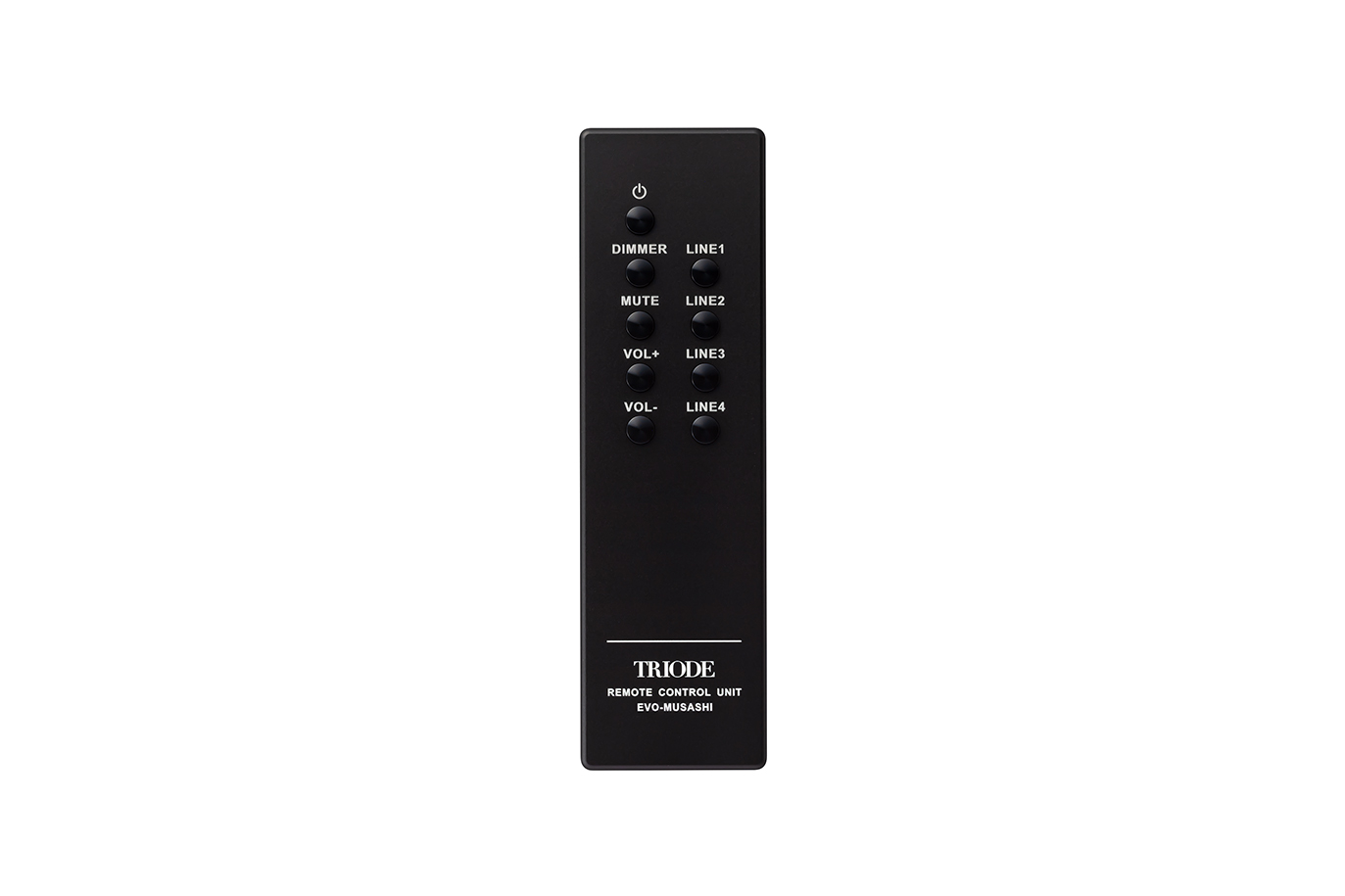

| Other functions | Remote control (Standby/On, Volume, Mute, Input select, Dimmer) Bias adjuster with bias meter Power amplifier mode with MAIN IN input and switch |
| Power consumption | 520W (190W/No signal) |
| Dimensions | W440mm x D337mm x H220mm |
| Weight | 32.8kg |
| Accessories | Tube cover , Remote control |
