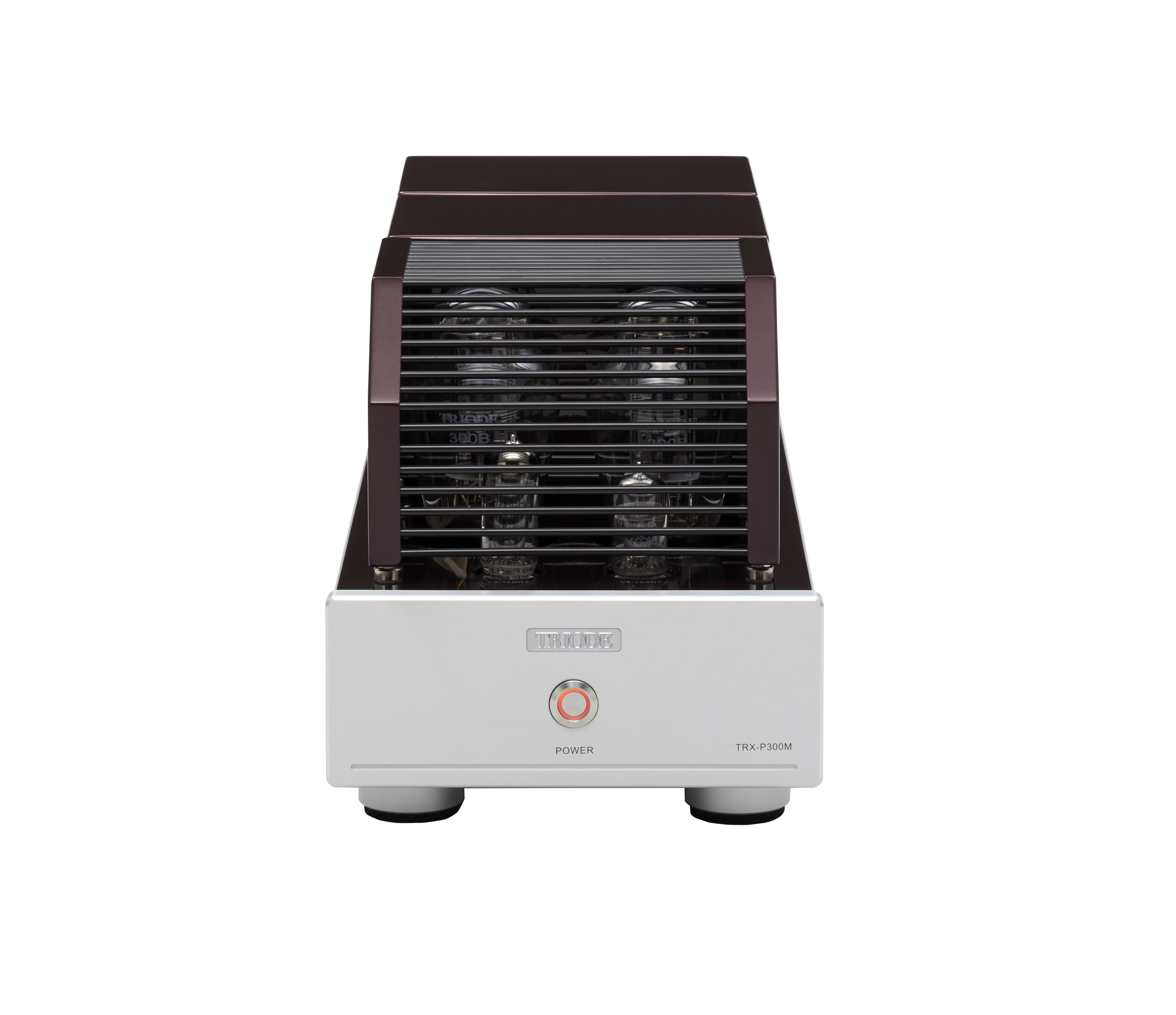

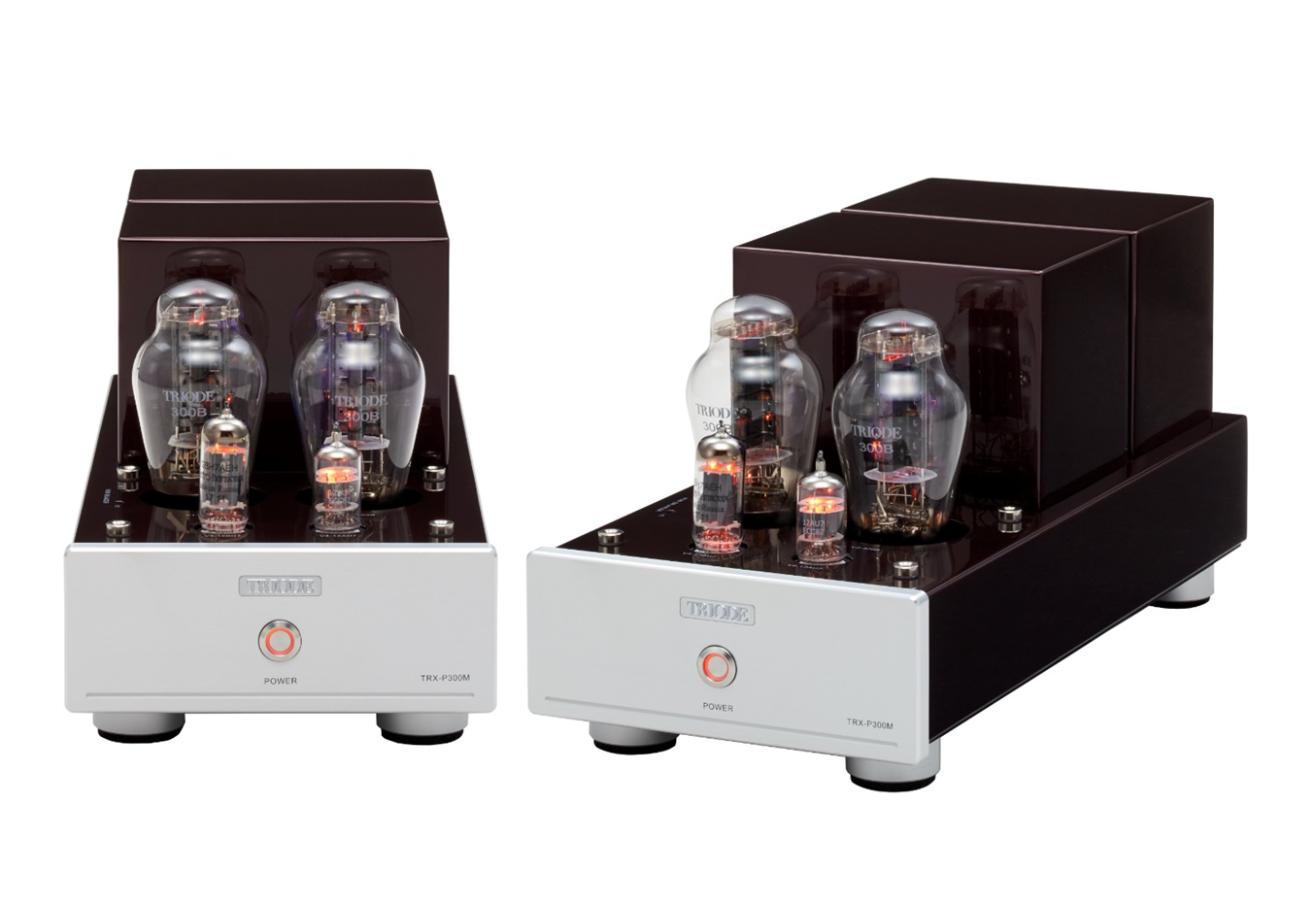

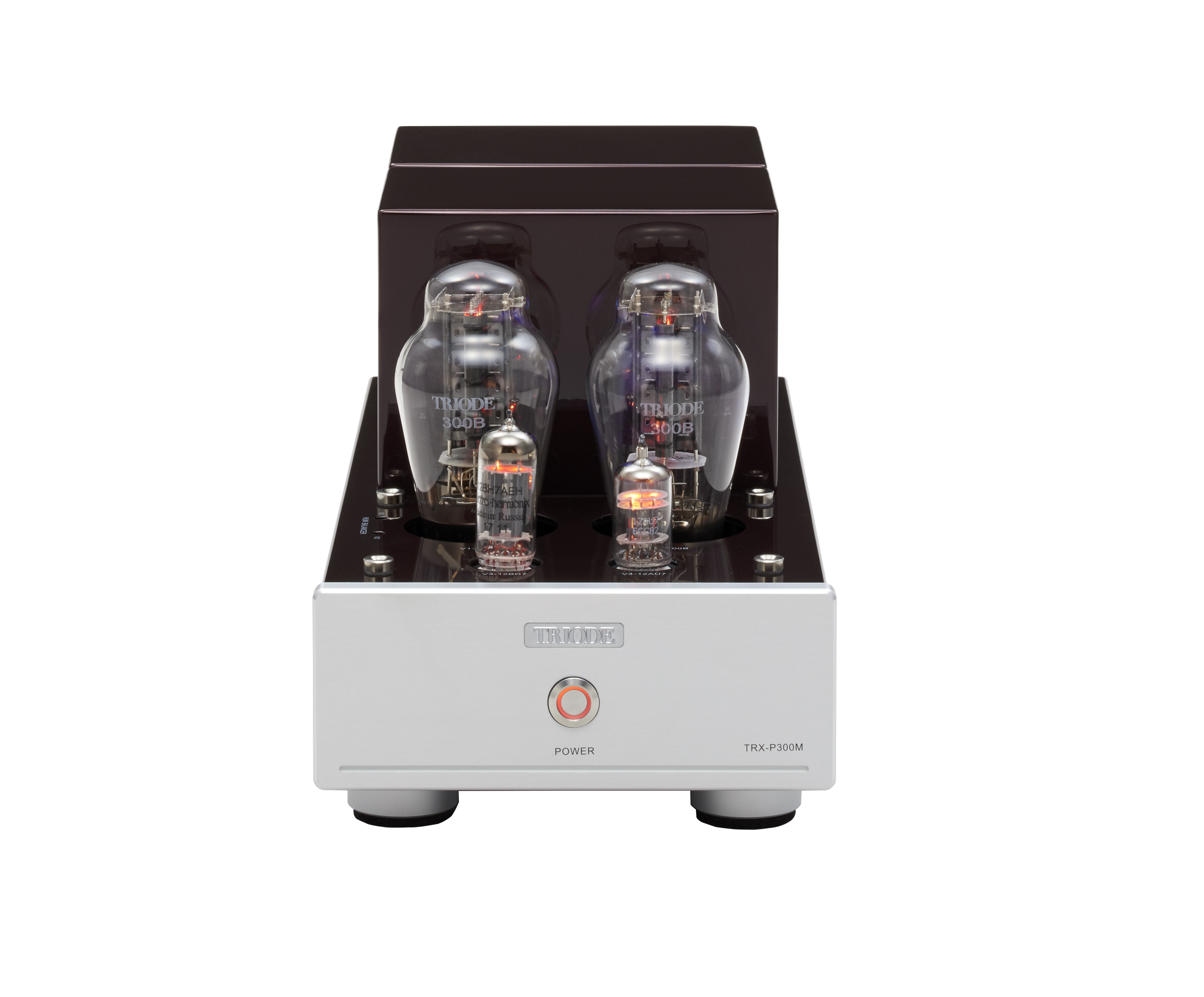

TRX-P300M

300B A class parallel single ended monaural power amplifier

Circuit system 300B A class parallel single ended monaural power amplifier
Tubes 300B x 2 , 12BH7 x 1 , 12AU x 1
Bias Self bias
Output power 15W at 8 ohms
Frequency response 10Hz-50kHz(-3dB)
S/N ratio 87dB
Input sensitivity 700mV
Input impedance 100k ohm

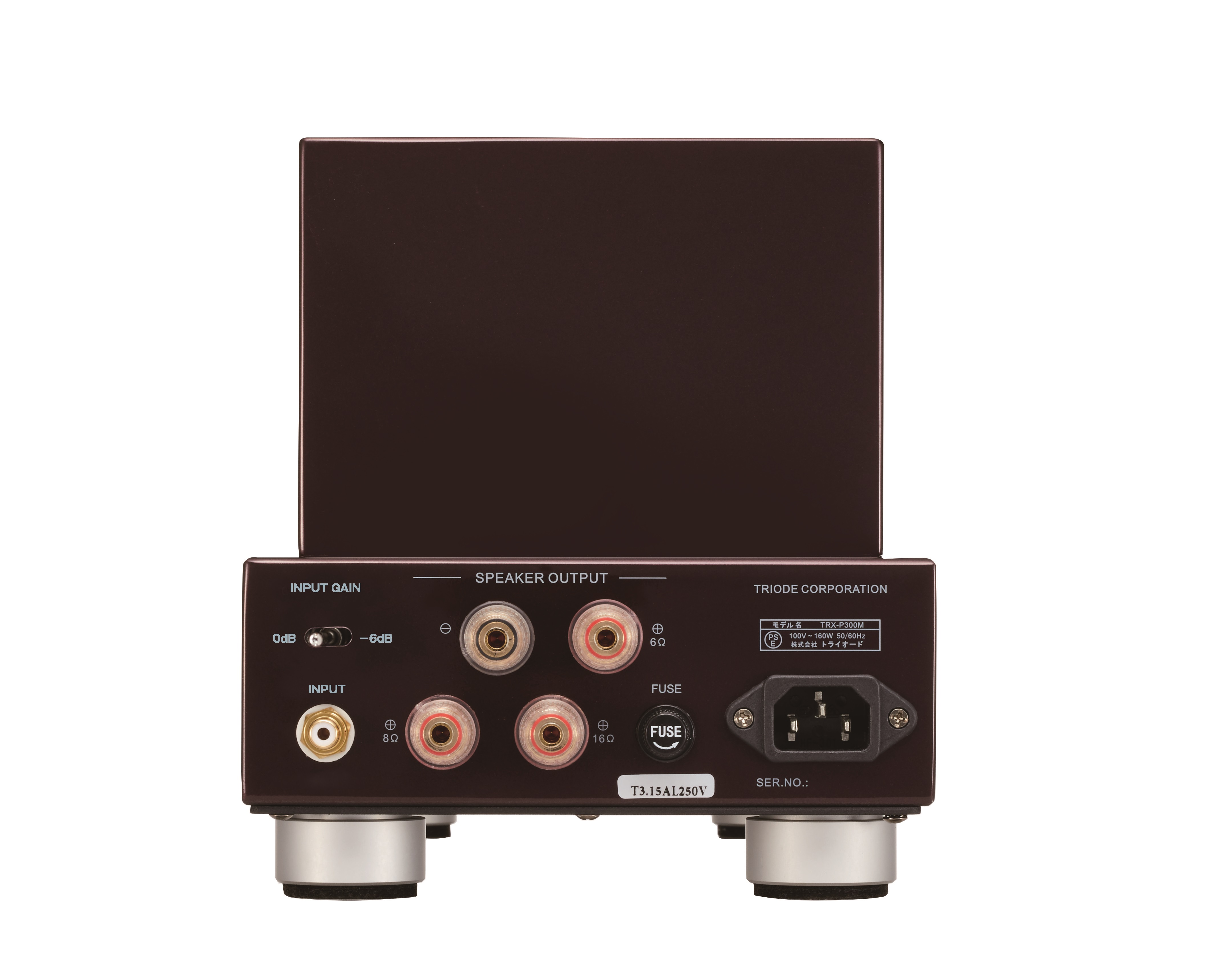

Input gain selector 0dB / -6dB
Speaker output terminals 6 ohms / 8 ohms / 16 ohms
Equipped components High quality speaker terminal
Power consumption 110W
Dimensions W185mm x D430mm x H203mm
Weight 16kg
Accessories Tube cover
