■HOME >> ■Triode Production　［TRX-P6L］

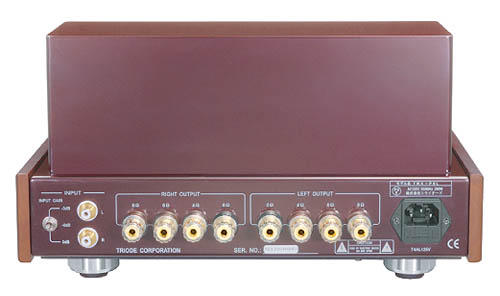

TRX-P6L 6L6GC AB class push-pull ended stereo power amplifier  Production End

Specification Tubes : 6L6GC*4 , 12AX7*2 , 12BH7*2 Bias : Self bias Output power :     Ultralinear mode / Triode mode switchable ( at 8 ohms)     6L6GC : Ultralinear mode 25W+25W , Triode mode 12W+12W     KT88 : Ultralinear mode 30W+30W , Triode mode 15W+15W     EL34 : Ultralinear mode 30W+30W , Triode mode 15W+15W Frequency response : 10Hz-100kHz(-1,-4dB) S/N ratio : 90dB Input sensitivity : 600mV Input impedance : 100k ohm Input terminals : RCA unbalanced*1 Input gain selector : 0dB , -3dB , -6dB NFB selector : 0dB , 3dB , 6dB Output terminals : 4 ohms , 6 ohms , 8 ohms Power consumption : 100W (No signal) , 220W (Max.output) Dimensions : W343mm*D305mm*H183mm Weight : 16.8kg Accessories : Tube cover , Wooden side plates , AC cable
